Extruder TriangleLab TBGS

STEPPER MOTOR (36mm) NOT INCLUDED!

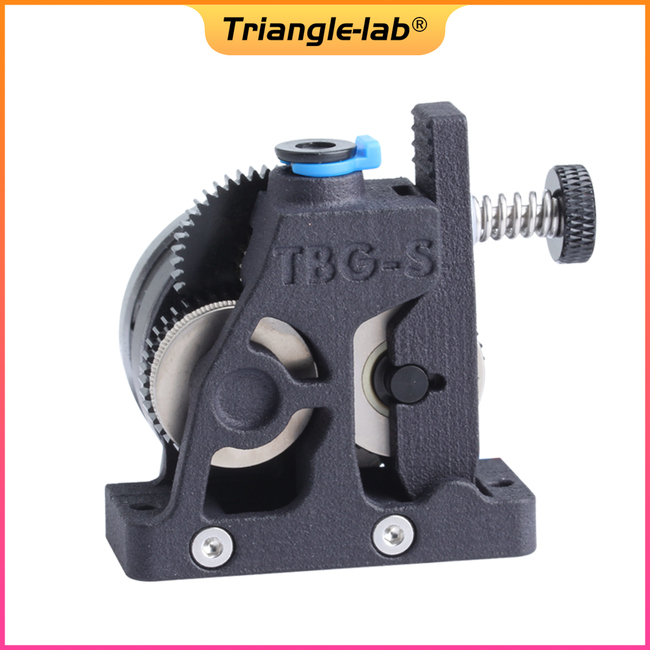

Trianglelab TBGS Extruder

Specification
Max pushing force: 8.2kg PETG @10mm/min
Reduction ratio is 11.53125:1
Steps pre mm:615(16x)
Weight:138g
More information
Please click here

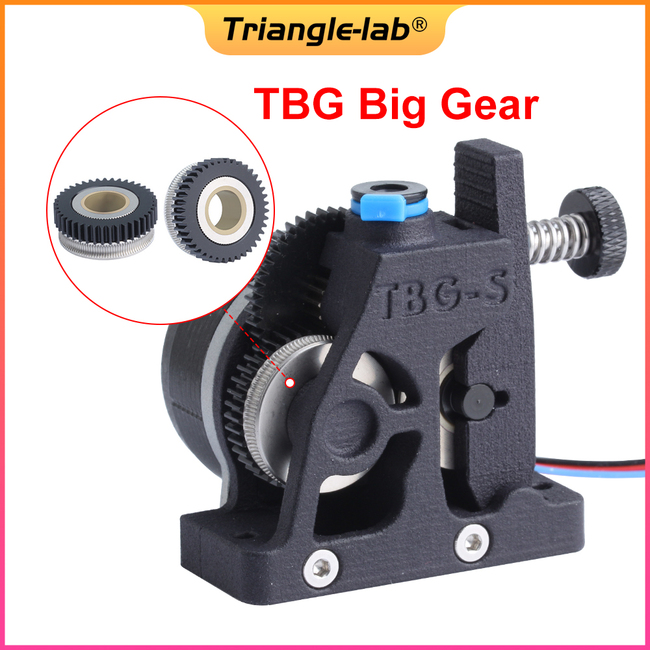

TBGS Big Gears

Larger drive wheels, for increased filament grip.
The entire internal main structure of the TBGS Extruder consists of three large
gears. The huge gears and the super dense teeth enable a better bite on the
filament. More gripping power.


Size Comparison

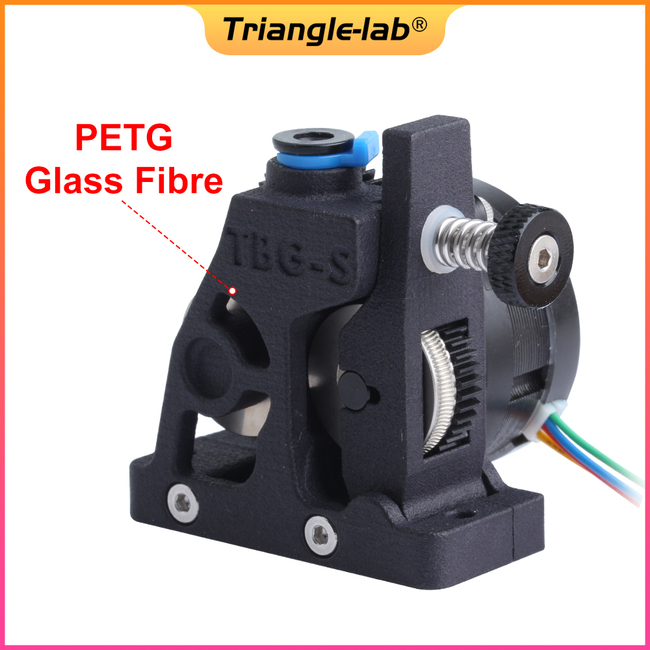

TBGS Extruder Housing

The housing components are printed in PETG+Glass Fibre for
maximum strength and precision as well as higher temperature
resistance.

Size

TBGS Motor

Compatible with 36mm Round stepper motorfeaturing a 10 teeth motor gear.
