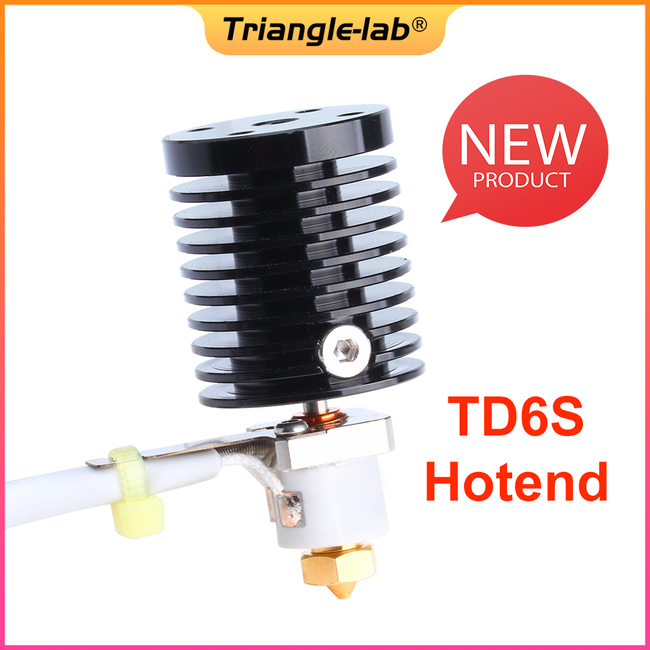

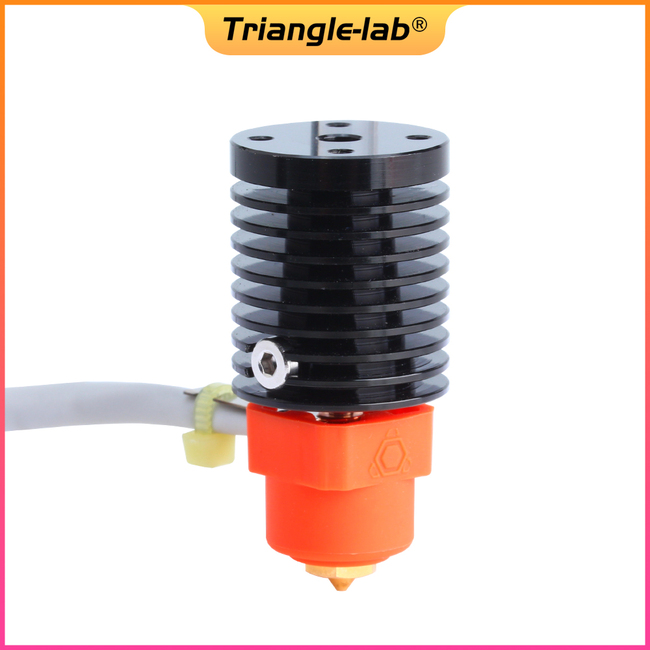

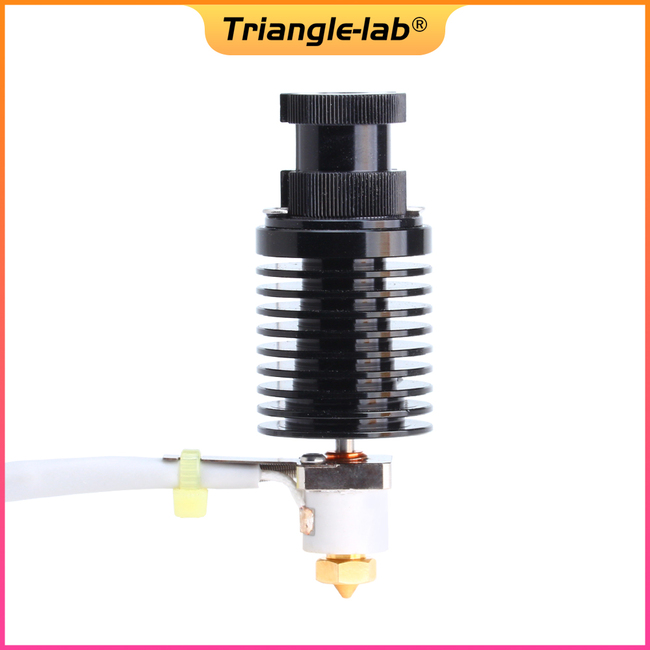

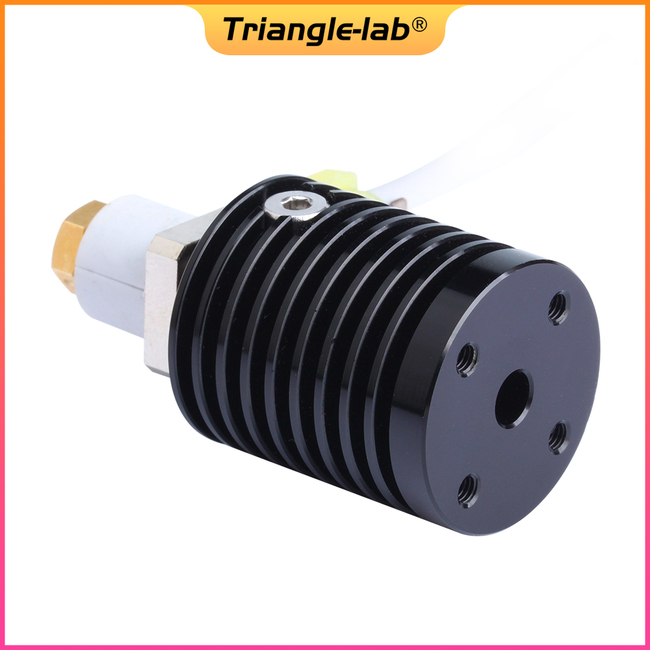

TD6S Hotend 24V

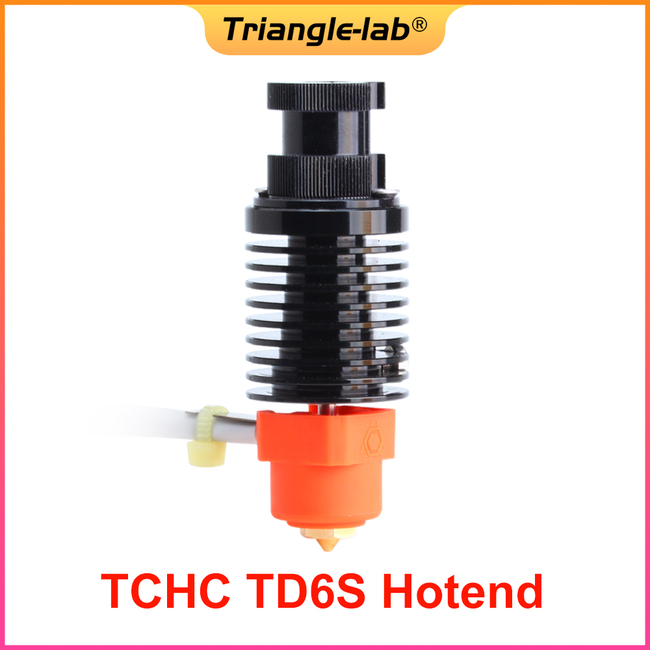

TCHC TD6S Hotend

One Piece Design
Heatbreak and Nozzle in one design
If you don't know how to install Heatbreak and nozzle, choose this Hotend, which is a great way to avoid material leaks during printing. It extends the life of the Hotend.

Ring Heating
Evenly heated to achieve 360° ring heating

High temperature resistant, suitable for all types of filament:
PLA ABS ASA PETG PA PA+CF
High quality printing accuracy, good durability. Very slow thermal
conductivity to the cold end. High heat dissipation. Suitable for filaments in the full temperature range.
Smooth thread
M6 smooth thread design
The throat threads are tightly integrated with the copper-plated heating ring threads to prevent consumables from leaking out.Using a 104GT thermistor 50W Heater Cartridge


*Built-in 104NT-4-R025H42G Thermal
Marlin Firmware Configuration
* 5:100K thermistor - ATC Semitec 104GT-2/104NT-4-R025H42G(Used in ParCan & J-Head) (4.7k pullup)
#define TEMP_SENSOR_0 5
Repetier
ATC Semitec 104GT-2
Klipper
sensor_type: ATC Semitec 104NT-4-R025H42G


High Strength Heat Resistance
Extremely thin Heatbreak walls for effective heat rejection


Split Dismantling
Using copper alloy Bi-Metal Heatbreak. Ceramic Heating Ring E3D V6 Brass Nozzle.
One-piece dismantling
Heatbreak and Nozzle in one design
