V6 Heatbreak 1.75mm (Bi-Metal)

▉NEWS:

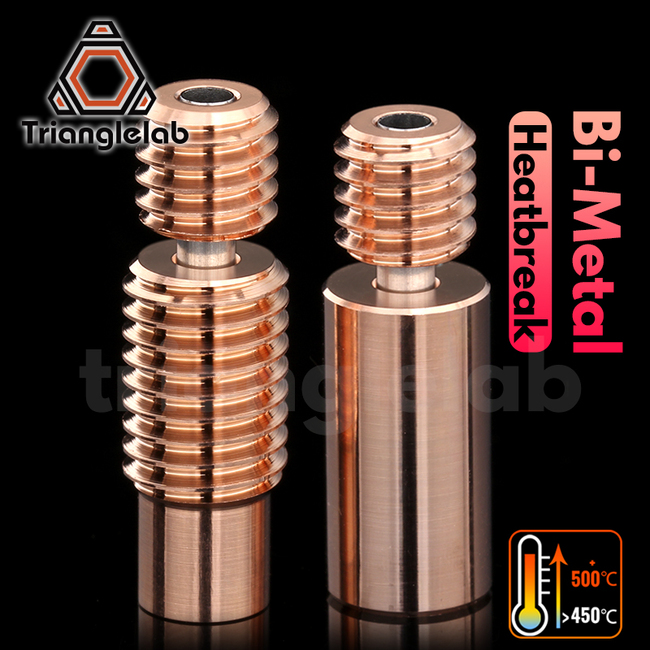

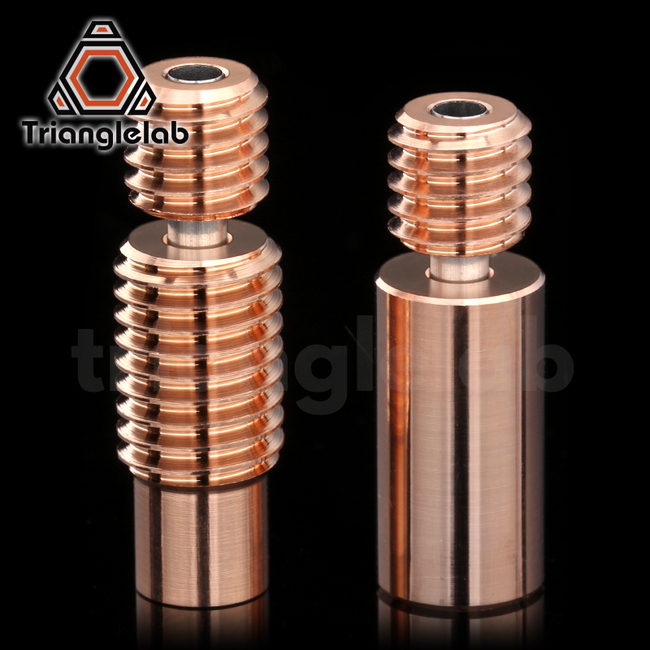

Many customers are very impressed with our titanium alloy Heatbreak. They think that the performance of titanium alloy Heatbreak is excellent and it will not be surpassed. But today I would like to introduce a brand new Heatbreak. Its name is "Bi-Metal Heatbreak" It has two components with different thermal conductivity. It is composed of 3 parts. We use a special process to hold them firmly together. You don't need to worry about it being damaged.

trianglelab 450℃-rated Bi-Metal Heatbreak melts filament faster and conducts 60% less heatacross the Break Zone than competing Heatbreaks


▉Size:
For 1.75mm filament


▉Compatible:
Please note that thesmoothandthreadedversions of Heatbreak aredifferent!
The smooth surface version of HEATBREAK is also the standard size of V6.

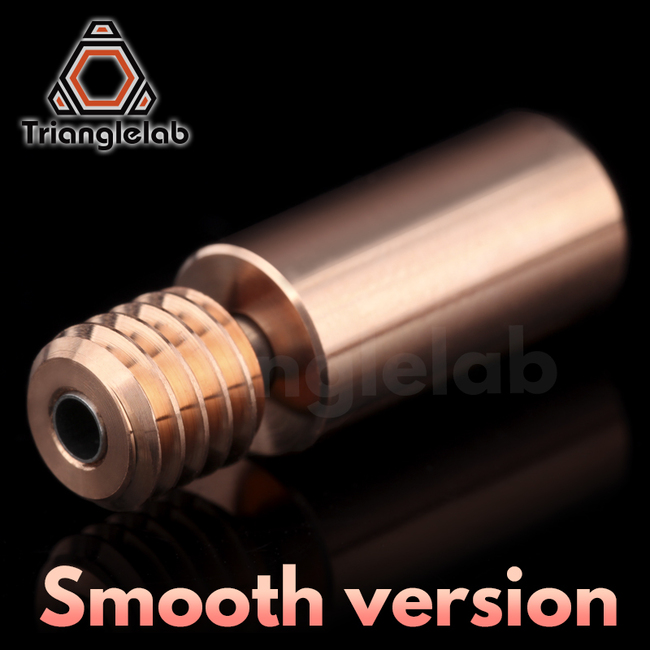

♦Bi-Metal Heatbreak(Smooth version):

Bi-Metal Heatbreak(Smooth version)
Compatible with Ender 2/Ender 3/Ender 3 PRO/Ender 5/Ender 5 PLUS/Ender 5 PRO/Ender 6
Compatible with CR-10/CR-10 mini/CR-10 S4/CR-10 S5/CR-10S/CR-10S PRO/CR-20/CR-20 PRO
Compatible with TronXY X5S/TronXY XY2 PRO/TEVO Tornado/Alfawise U20/Lotmaxx SC-10

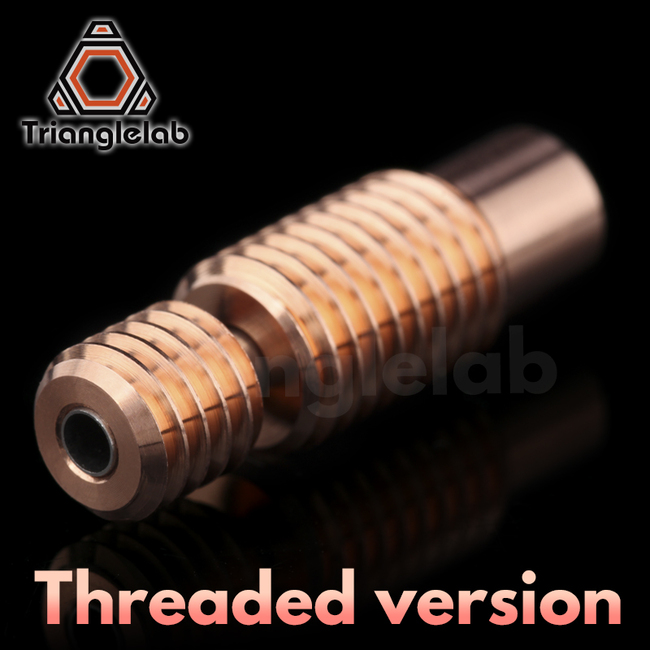

♦Bi-Metal Heatbreak(threaded version):

Bi-Metal Heatbreak(threaded version)
Compatible with Heatsink
Compatible with Volcano Heat Block
Compatible with PT100 Volcano Heat Block
Compatible with V6 Heat Block
Compatible with PT100 V6 Heat Block
Compatible with Prusa I3 MK3/MK3S
Compatible with Prusa I3 Bear MK3S

▉What's in the box:
Trianglelab - Bi-Metal Heatbreak X 1(Order Quantity)


▉NOTE:
We found that many customers do not know how to properly install the nozzle.
Remember the core issues in the installation process.
Just make sure your nozzle and HEAT BREAK front end are tight and sealed. Otherwise, the melted consumables will leak along the screw holes.

Heatebreaker performance comparison test
prusa I3 MKS3 print head
nozzle temperature 215℃
ambient  temperature 22℃
temperature probe depth 40+-0.5mm from top plate of heatsink
cooling fan Noctua NF-A4x10 5V

Read the temperature 15mins after nozzle stable at 215℃
thermal paste was applied in between the heatbreak and heatsink model:shin-etsu 7868 6.2W/m °K
both setup share the same heater block thermistor nozzle and cooling fan
only the heatebreaker and heatsink is diffent

Result: lower is better
. V6 standard(M7) stainless-steel heat breaker39.1℃
. V6 standard(M7) titanium alloy heat breaker34.1℃
. V6 BI-metal(M7) heater breaker30.5℃
